150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module

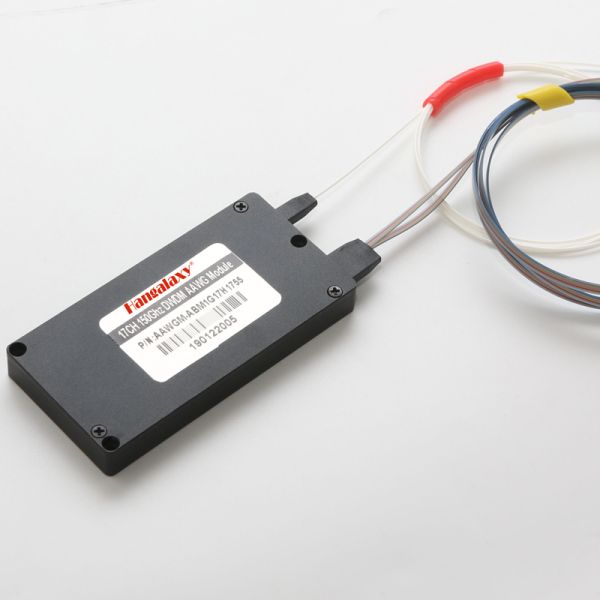

150Ghz 17CH Athermal AAWG Module Fiber Optic PLC Splitter Module

The Hangalaxy Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 150GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Hangalaxy’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Feature

• 17 Channels x 150GHz Mux/Demux;
• Flat-top Passband;
• Fully Passive Module;
• Operating Temperature Range from -40ºC to 85ºC;
• Low Insertion Loss & PDL;
• Low Crosstalk;
• High Uniformity;
• No Electronics Required;
• Compact Footprint;
• Telcordia GR-1209/GR-1221 Qualified.

Operating & Storage Conditions

Absolute Maximum Ratings

Physical Parameters

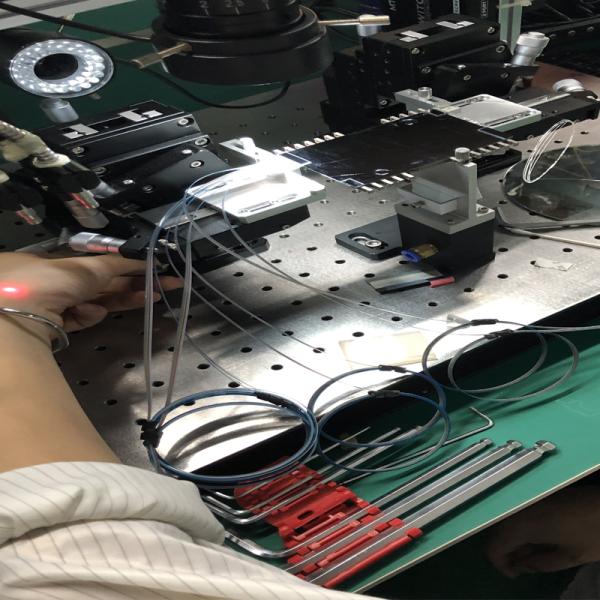

AAWG Module Workshop

Quality Guarantee

Hangalaxy has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.

dwdm fiber optic cable

fiber optic dwdm

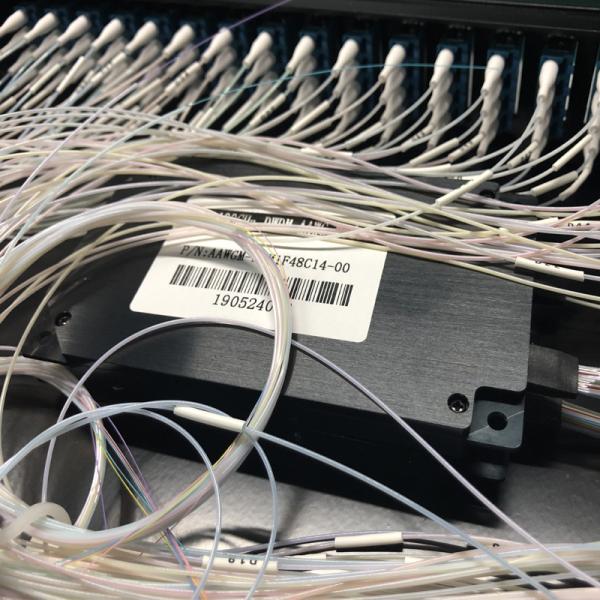

150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module Images
