18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

Name: 18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 1611nm Operating Wavelength
Brand: Hangalaxy
Price: 1 USD

Buy cheap 18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength product

Brand Name : Hangalaxy

Model Number : HGYN-115

Certification : CE, FCC, RoHs, SGS, ISO9001

Place of Origin : China

MOQ : MOQ Saying is 10pcs

Price : Negotiation By email or Phone Call

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5055PCS Monthly

Delivery Time : 7 Business Days

Packaging Details : 1PCS Each Individual Quality PE Bag

Operating Wavelength : 1270 ~ 1611nm

Channel Spacing : 20nm

Channel Passband : CWL±6.5nm

Adjacent Channel Isolation : 30dB

Directivity : 55dB

PDL : 0.2dB

Contact Now

18CH LC UPC CWDM Demux Mux Optical Mudule

DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

Keyed Characteristics

● Telcordia GR-1221 compliance;
● High temperature stability;
● Low insertion loss;
● Epoxy-free optical path;
● Compact size.

Application

● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.

Technical Parameter

Parameter	Unit		16CH	18CH
Operating Wavelength	nm		1270 ~ 1611
Channel Spacing	nm		20
Channel Passband	nm		CWL±6.5
Insertion Loss (Without Connectors)	Max.	dB	1.6	1.8
Adjacent Channel Isolation	Min.	dB	30
Non-Adjacent Channel Isolation	Min.	dB	45
Directivity	Min.	dB	55
Return Loss	Min.	dB	45
Polarization Dependent Loss	Max.	dB	0.2
Polarization Mode Dispersion	Max.	dB	0.3
Passband Ripple	Max.	ps	0.5
Tensile Load	Min.	N	5
Power Handing	Min.	mW	300
Operating/Storage Temperature		℃	-40 ~ +80
Package Dimension (L x W x H)		mm	50506.6

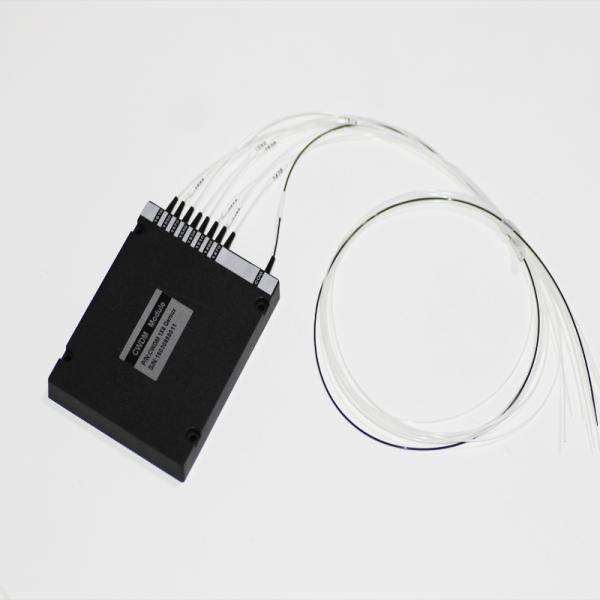

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

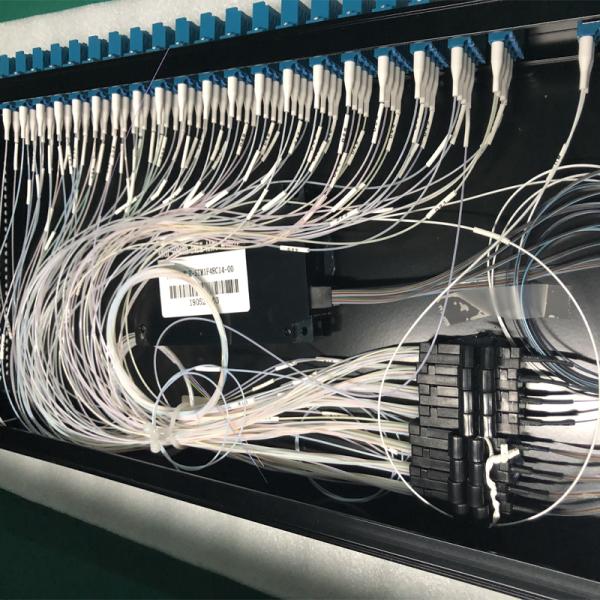

Hangalaxy Factory

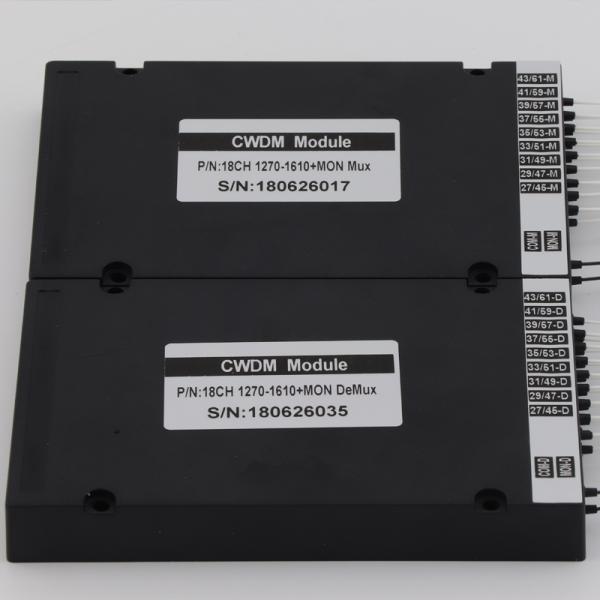

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

Product Tags:

fiber optic plc splitter

fiber optic dwdm

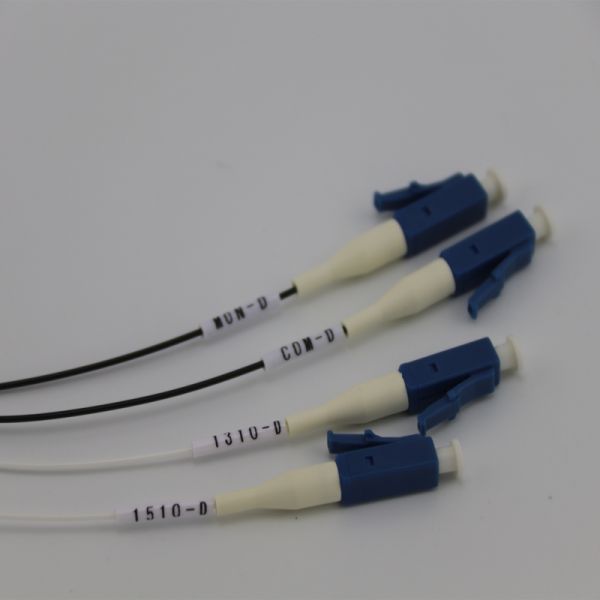

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength Images
