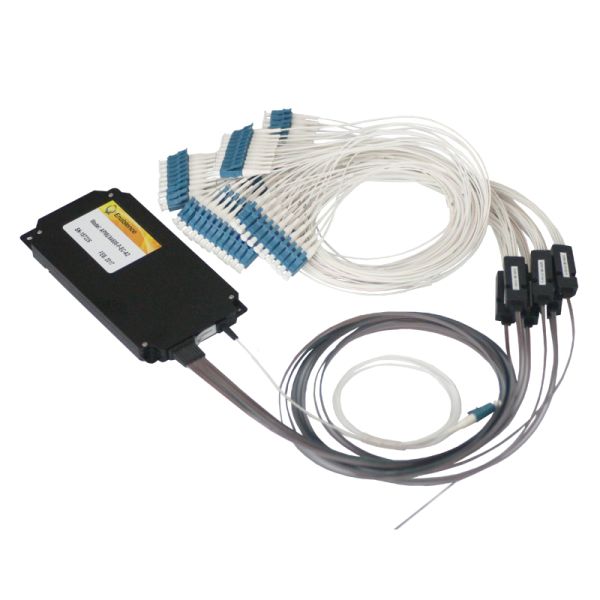

48CH LC UPC Fiber Optic CWDM DWDM AAWG Module High Channel Isolation

Name: 48CH LC UPC Fiber Optic CWDM DWDM AAWG Module High Channel Isolation
Brand: Hangalaxy
Price: 1 USD

Buy cheap 48CH LC UPC Fiber Optic CWDM DWDM AAWG Module High Channel Isolation product

Brand Name : Hangalaxy

Model Number : HGYN-116

Certification : CE, FCC, RoHs, SGS, ISO9001

Place of Origin : China

MOQ : MOQ Saying is 10pcs

Price : Negotiation By email or Phone Call

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5055PCS Monthly

Delivery Time : 7 Business Days

Packaging Details : 1PCS Each Individual Quality PE Bag

Operating Wavelength : 1270 ~ 1611nm

Channel Spacing : 20nm

Channel Passband : CWL±6.5nm

Adjacent Channel Isolation : 30dB

Directivity : 55dB

PDL : 0.2dB

Contact Now

48CH LC UPC Fiber Optic AWG DWDM Demux Mux Optical Mudule

DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.

Keyed Characteristics

1. Low Insertion Loss;
2. High Channel Isolation;
3. Excellent thermal stability;
4. High Stability and reliability;
5. Telcordia compliant;
6. RoHS compliant.

Application

● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.

Technical Parameter

Parameter		Unit	Value
Pass Band Type		-	Flat-top	Gaussian
Channel Spacing		GHz	150
Channel Number		CH	17
Wavelength Accuracy		nm	±0.05
1dB Pass Band		nm	≥0.38	≥0.2
3dB Pass Band		nm	≥0.58	≥0.4
Insertion Loss¹		dB	≤6.0 Typ.4.5	≤3.5 Typ.2.8
Ripple		dB	≤0.5	≤1.5
Uniformity		dB	≤1.5	≤1.5
Adjacent Crosstalk		dB	≥23	≥26
Non-adjacent Crosstalk		dB	≥29	≥35
Total Crosstalk		dB	≥21
Polarization Dependent Loss(PDL)		dB	≤0.5 Typ.0.25	≤0.7 Typ.0.35
PMD²		ps	≤0.5
Chromatic Dispersion²		ps/nm	±20
Return Loss		dB	≥40
Fiber	Input Port	mm	Φ0.9
	Output Ribbon	-	-
	Fan Out	mm	Φ0.9
Operation Temperature		℃	-40～+85
Storage Temperature		℃	-40～+85
Package		mm	80×40×9.6

Parameter	Unit		16CH	18CH
Operating Wavelength	nm		1270 ~ 1611
Channel Spacing	nm		20
Channel Passband	nm		CWL±6.5
Insertion Loss (Without Connectors)	Max.	dB	1.6	1.8
Adjacent Channel Isolation	Min.	dB	30
Non-Adjacent Channel Isolation	Min.	dB	45
Directivity	Min.	dB	55
Return Loss	Min.	dB	45
Polarization Dependent Loss	Max.	dB	0.2
Polarization Mode Dispersion	Max.	dB	0.3
Passband Ripple	Max.	ps	0.5
Tensile Load	Min.	N	5
Power Handing	Min.	mW	300
Operating/Storage Temperature		℃	-40 ~ +80
Package Dimension (L x W x H)		mm	50506.6

48CH LC UPC Fiber Optic CWDM DWDM AAWG Module High Channel Isolation

Hangalaxy Factory

48CH LC UPC Fiber Optic CWDM DWDM AAWG Module High Channel Isolation
